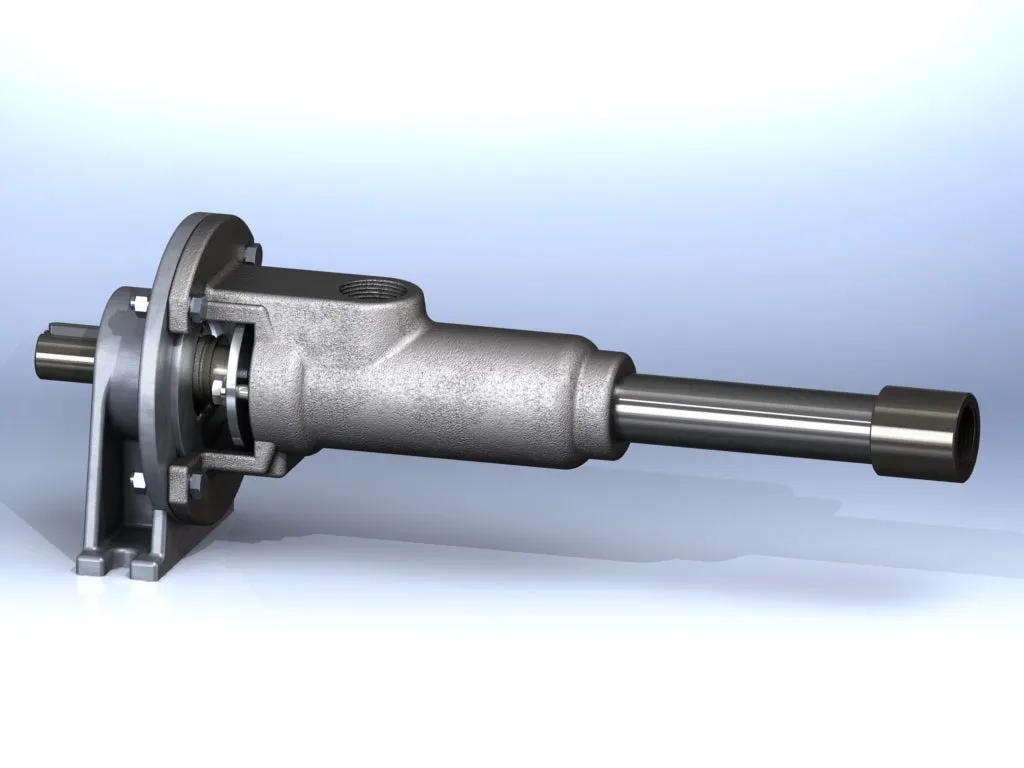

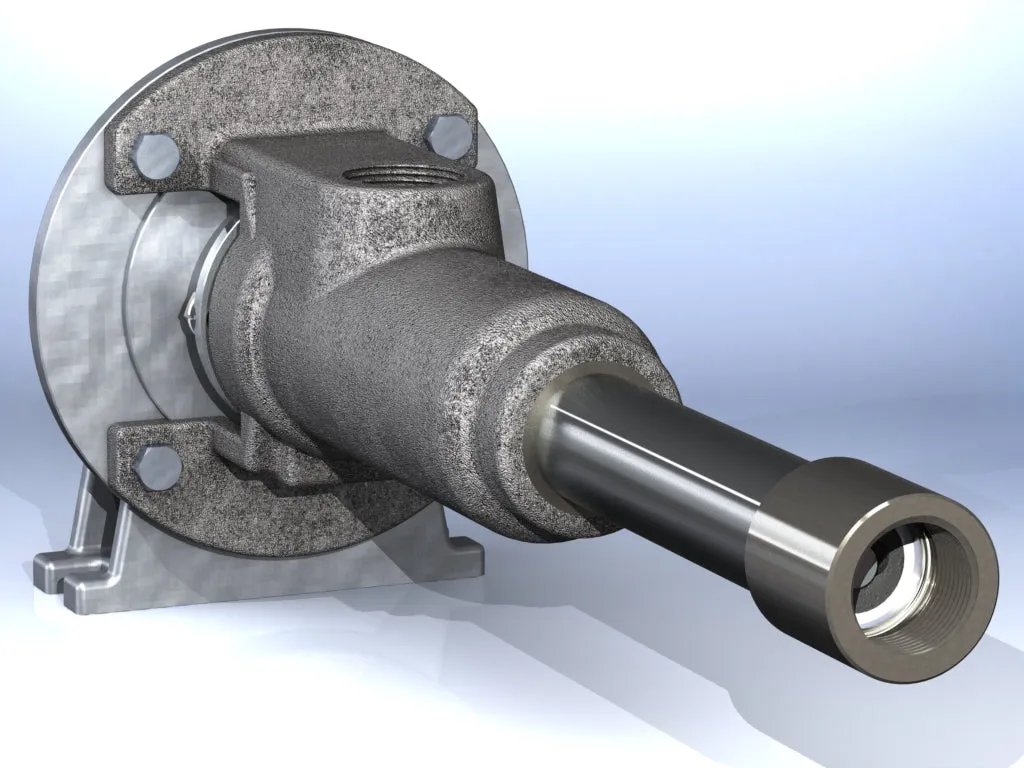

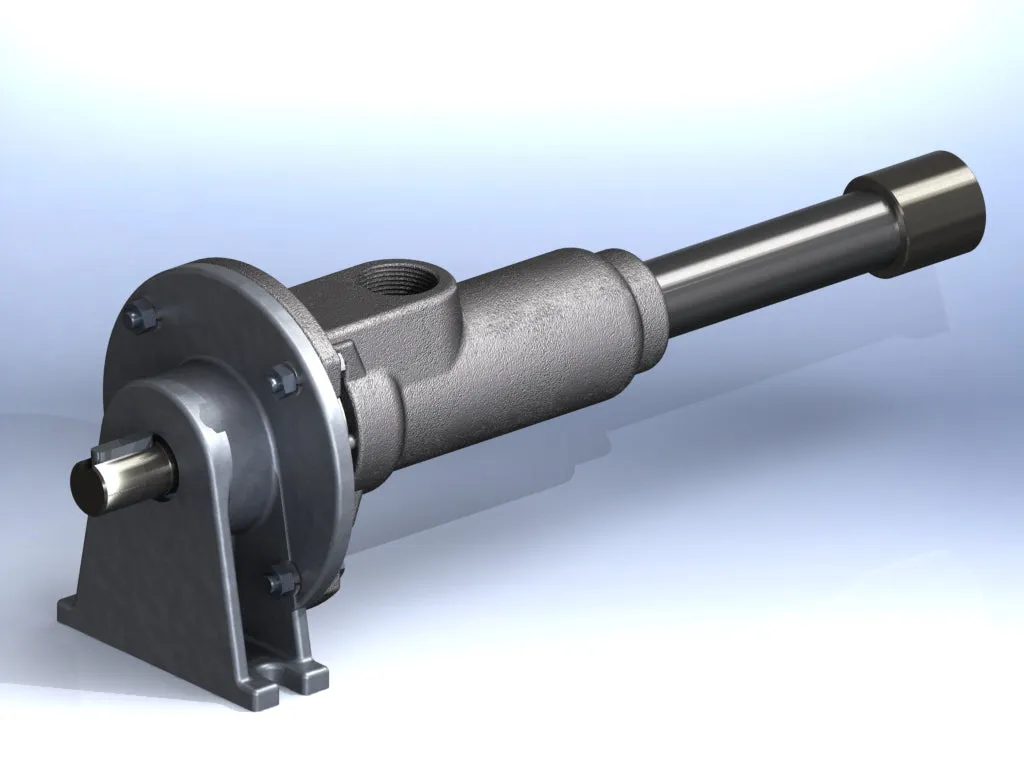

The Dosing Series…
The pumps of the WDP series are widely used in laboratory dosages due to their perfect and exact dosage.
Low to highly viscous liquids, pasty, neutral or aggressive, pure or abrasive, gaseous or tending to froth, also with fibrous and solids content
Main Application,,,
Sewage and environmental engineering, chemical and petrochemical industries, food and beverages industry, paper and pulp industry, soap and fats industry, dye and paint industry, plastic and ceramics industry
Performance data
- Capacity (Q) up to 10 l/min *
- Discharge pressure up to 12 bar
- Differential pressure up to 12 bar
- Viscosity up to 20000 mm²/s
- Fluid temperature up to 150°C
(*) Capacity may be easily adjusted by using a VFD, it results in accurate values.
Construction features
Base plate design (pump and motor mounted on a base plate)
Bulkhead mounting / Pedestal mounting
Dry installation
Horizontal installation
Pump drive directly coupled or by gear or belt transmission
Self - priming
Reversible pumping
